16AWG Waterproof Power Connector , Y Branch Male Female Power Connector

Name: 16AWG Waterproof Power Connector Y Branch Male Female Power Connector
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : Waterproof Power Connector

Certification : TUV, UL, 3C, CE, ROHS, ISO90001

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pair/day

Delivery Time : 3-5 days

Packaging Details : 1.plastic bag 2.carton 3.As per customer's requirement

product name : 3 Pin 16AWG Waterproof Power Connector

current rating : 10A

protection degree : IP68 screw locking

number f contacts : 3 pin

Contact material : Copper alloy(gold-plated)

cable gauge : 20-16AWG

Contact Now

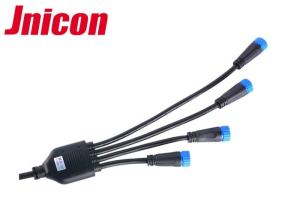

3 Pin 16AWG Waterproof Power Connector Y Branch Male Female Connector IP68

The features of Y Branch 3 Pin 16AWG Waterproof Power Connector

1. 3 pin Y shape outdoor waterproof connector for cable welding

2. Pins: 2 pin, 3 pin, 4 pin, 5 pin

3. IP68, waterproof with dust-cover.

4. Current rating is 10A.

5. 2 branch, 3 branch, 4 branch, 5 branch, 6 branch, 7 branch 8 branch are available. OEM/ODM are accepted .

6. Connecting mode is screw locking type.

7. More safe, stable and durable.

The specifiction of Outdoor underground IP68 waterproof LED connector

Type	Screw circular waterproof connector
Application	Power, LED, Electrical equipment
Gender	Male to Female
Protection Level	IP68
Connector type	Screw locking
Number of contact	2 pin/3 pin/4/pin/5 pin
Current rating	10A
Voltage rating	300V
Contact diameter*number	∅1.5
Withstanding voltage	1500V
Cable gauge	20-16AWG
Operating temperature	-40°C~+105°C
Material of shell, insulating parts	High performance engineering plastics
Material of copper needles	Copper alloy

Application

M15 series plastics and smaller size waterproof power connectors could be widely used in:

• LED water-proof/ dust-proof/ fire-proof outdoor LED lighting,

• LED display screen

• Test measurement

• Industrial equipment etc.

meet more industry application requirements.

Jnicon will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product.

Product detail picture

16AWG Waterproof Power Connector , Y Branch Male Female Power Connector
